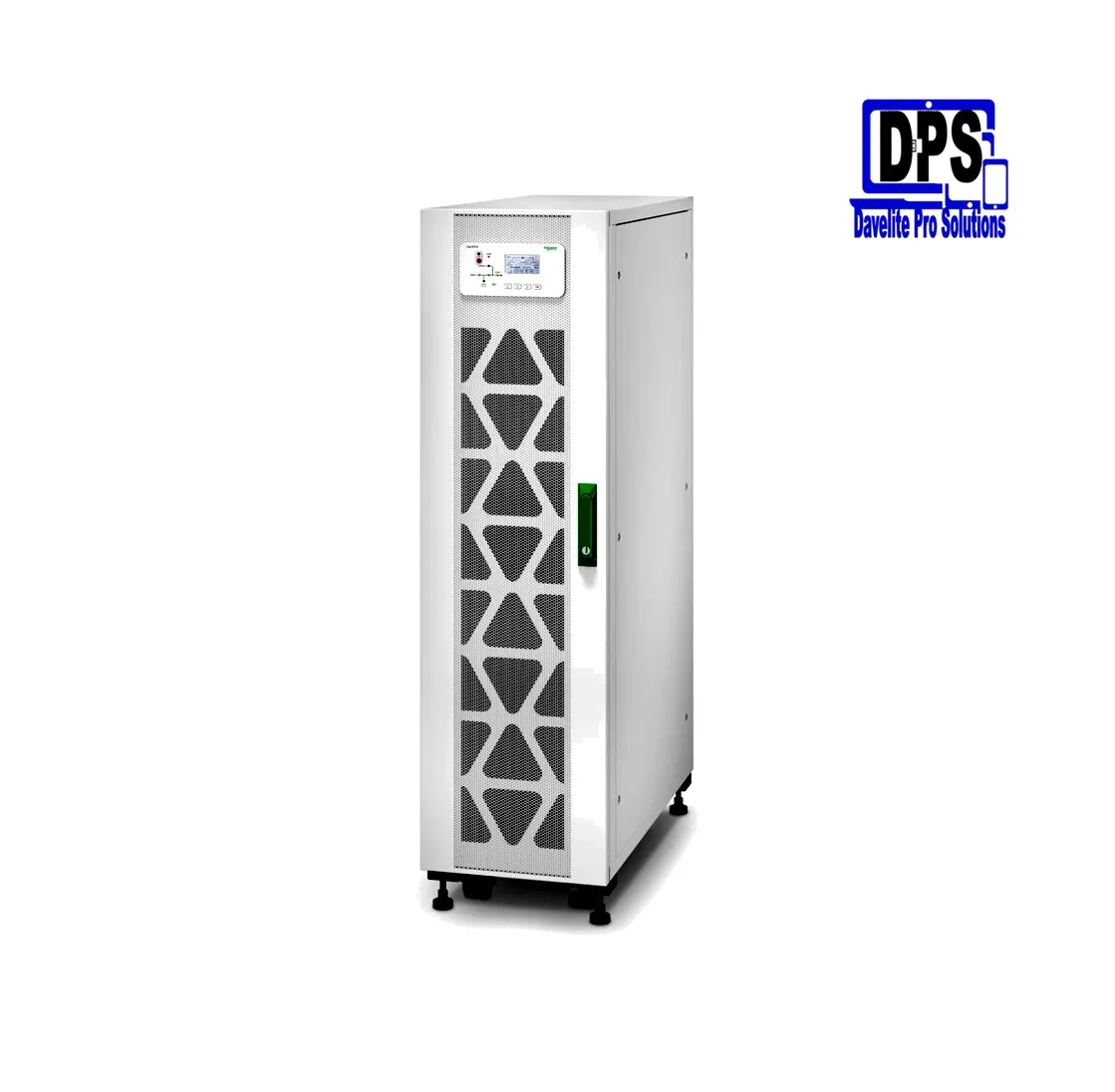

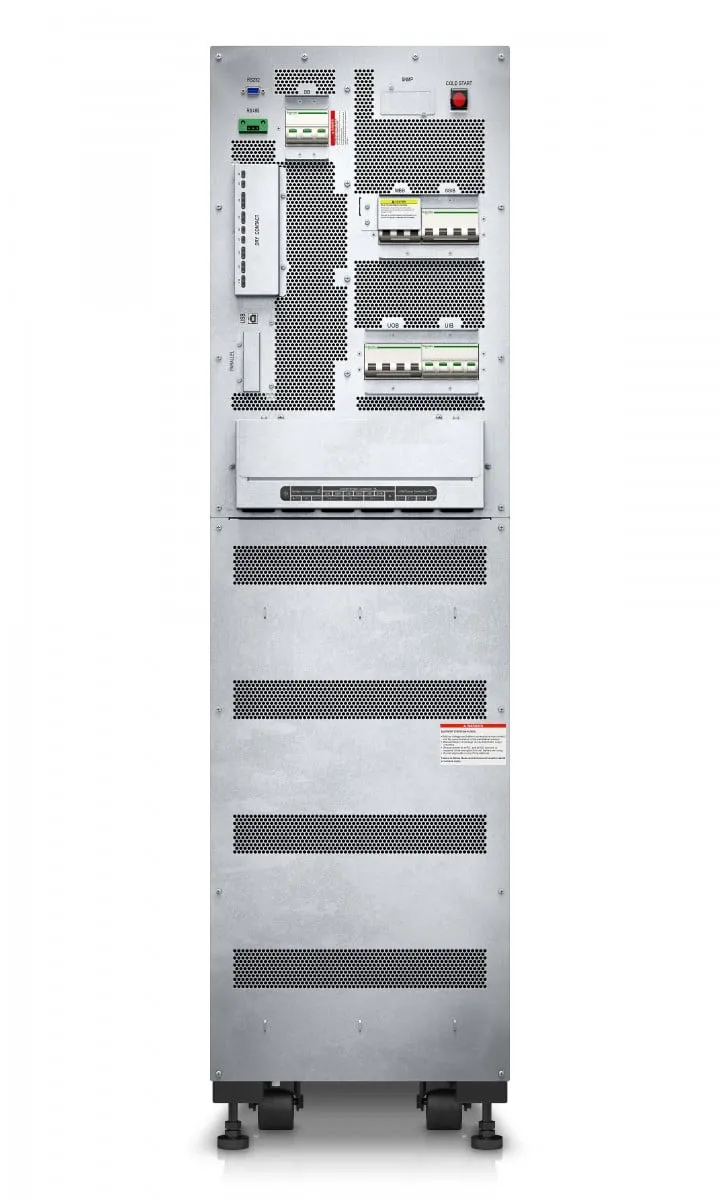

Schneider E3SUPS15KHB1 On-Line UPS, 15kVA/15kW, 3 Ph, 3S, 400V 3:3 UPS (E3SUPS15KHB1)
Original price was: KShs 1,287,350.00.KShs 1,017,900.00Current price is: KShs 1,017,900.00. Add VAT
Schneider E3SUPS15KHB1 On-Line UPS, 15kVA/15kW, 3 Ph, 3S, 400V 3:3 UPS (E3SUPS15KHB1)
- Brand: Schneider
- Model: E3SUPS15KHB1
- Power range: 15 kVA/15 kW
- Battery Voltage: 240V
- Maximum short-circuit current: 10 kA
- Maximum input current: 28 A
- Weight (kg): 436 kg
- Warranty: 2 Years
2 in stock
Schneider E3SUPS15KHB1 On-Line UPS, 15kVA/15kW, 3 Ph, 3S, 400V 3:3 UPS (E3SUPS15KHB1)
| Presentation | Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 1 internal 7Ah modular battery string, expandable to 3 strings for extended runtime. |
|---|
| Main Input Voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
|---|---|
| Input voltage | 380 V 415 V |
| Maximum input current | 28 A |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.9 leading to 0.9 lagging |
| Cos phi | 0.99 |
| Input voltage limits | 304…477 V |
| Network frequency | 45…65 Hz |
| Output voltage | 400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases |
| Output voltage | 380 V 415 V |
| Rated power in W | 15 kW |
| rated power in VA | 15 kVA |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 15 kVA |
| Maximum configurable power in W | 15 kW |
| Output harmonic distortion | < 3% linear load |
| Output voltage tolerance | +/- 1.5 % |
| UPS type | Double conversion online |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Battery type | VRLA |
|---|---|
| Additional information | UPS weight does not include battery weight. |
| Battery voltage | 240 V |
| Maximum short-circuit current | 10 kA |
| Number of battery-filled slots | 1 |
| Number of battery-free slots | 2 |
| Battery type | Lead-acid internal |
| UPS connectivity | Optional network management card 3 |
| Colour | White (RAL 9003) |
| Height | 140 cm |
| Width | 38 cm |
| Depth | 92.8 cm |
| Net weight | 436 kg |
| USB compatible | Yes |
| Provided equipment | Dust filter Installation guide |
| Range of product | Easy UPS 3S |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE EAC RCM |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 60 dBA |
| Heat dissipation | 852 W |
| Operating altitude | 0…3333 ft |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 164 cm |
| Package 1 Width | 101.4 cm |
| Package 1 Length | 56.3 cm |
| Package 1 Weight | 481 kg |
| Warranty (in months) | 12 |
|---|
