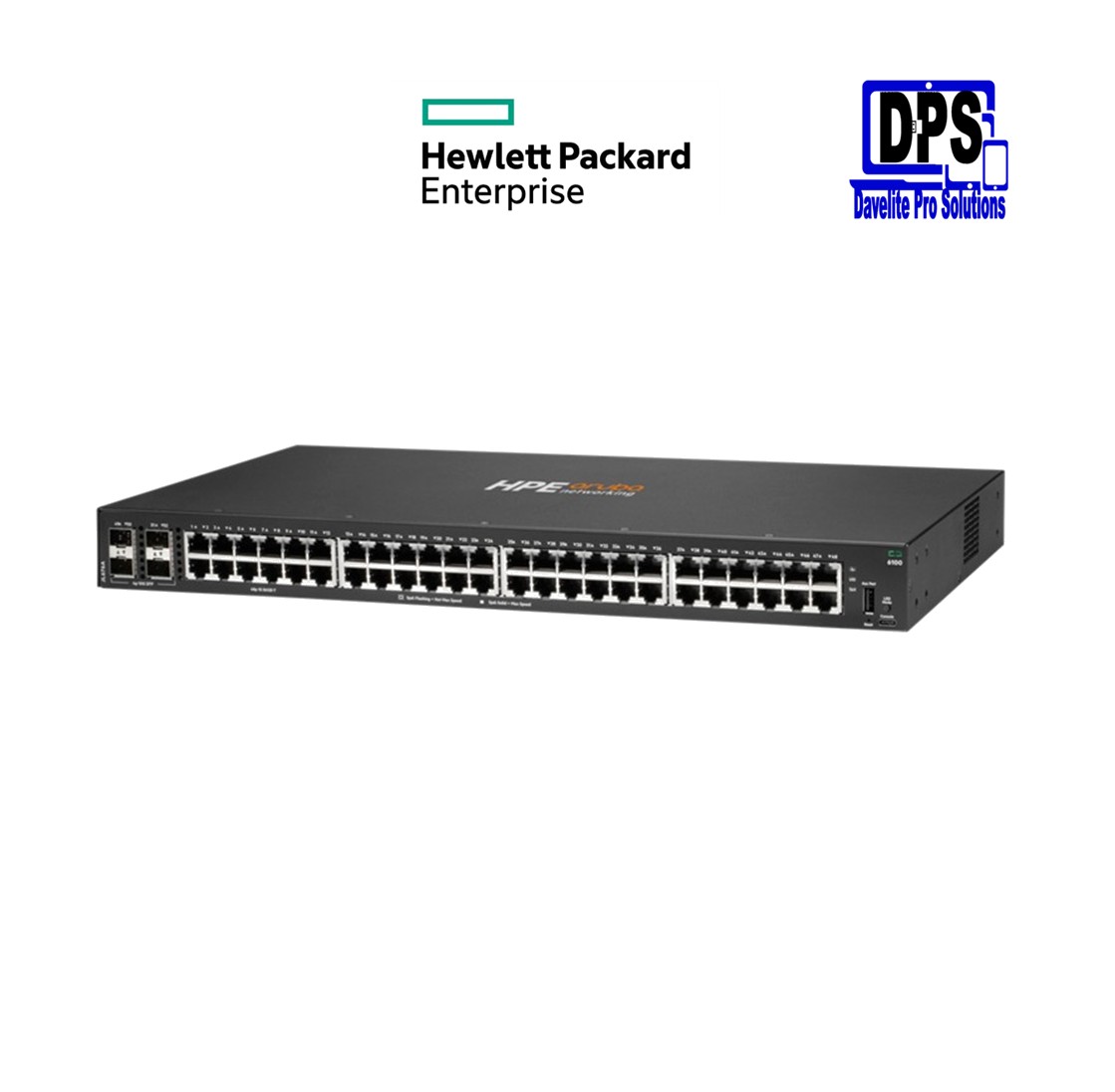

HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A)
Original price was: KShs 334,500.00.KShs 287,450.00Current price is: KShs 287,450.00. Add VAT
HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A)
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
- Memory: 4 GB DDR3 RAM and 16 GB eMMC flash memory.
- Management Ports: 1x USB-C Console Port and 1x USB Type-A Host port.
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
- Memory: 4 GB DDR3 RAM and 16 GB eMMC flash memory.
- Management Ports: 1x USB-C Console Port and 1x USB Type-A Host port.
15 in stock
HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A)
- Switching Capacity: 176 Gbps.
- Throughput: 98.6 Mpps (million packets per second).
- Latency: 1.9 μSec at 1 Gbps and 1.8 μSec at 10 Gbps.
- MAC Table Size: Supports up to 8,192 entries.
- Packet Buffer: 12.38 MB (4.5 MB Ingress / 7.875 MB Egress).
Hardware Specifications
As detailed by Provantage and Secure Wireless Works, the switch includes several key hardware components:
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
- Memory: 4 GB DDR3 RAM and 16 GB eMMC flash memory.
- Management Ports: 1x USB-C Console Port and 1x USB Type-A Host port.
- Dimensions: 4.39 x 44.2 x 24.74 cm (1.73 x 17.4 x 9.74 inches).
- Weight: 3.42 kg (7.54 lbs).
Power & Environmental
The JL676A is designed for energy efficiency and standard rack deployment:
- Power Consumption: Max power is rated at 44.2W; idle consumption is approximately 20.6W.
- Input Voltage: Supports 100-127 VAC / 200-240 VAC at 50/60 Hz.
- Cooling: Features fixed internal fans with a side-to-side airflow pattern.
- Operating Temperature: Ranges from 0°C to 45°C (32°F to 113°F).
- Acoustics: Sound pressure level is approximately 24.6 dB.
Software & Management
- Layer 2 Features: Support for VLANs (up to 4,094 IDs), ACLs (256 IPv4/MAC, 128 IPv6 entries), and robust QoS.
- Layer 3 Services: Includes support for static routing (up to 512 IPv4/IPv6 routes) and IPv6 capabilities.
- Stacking: Supports Virtual Switching Framework (VSF) stacking for up to 8 members.
- Management Tools: Compatible with Aruba Central (cloud or on-premise), Aruba NetEdit, Web GUI, and industry-standard CLI
Warranty: Limited lifetime warranty. See the warranty duration.
Weight: 3.4 kg (7.54 lbs)
Dimensions: 4.4 x 44.2 x 24.7 cm (1.73 x 17.4 x 9.74 in)
Fans: Fixed fans
