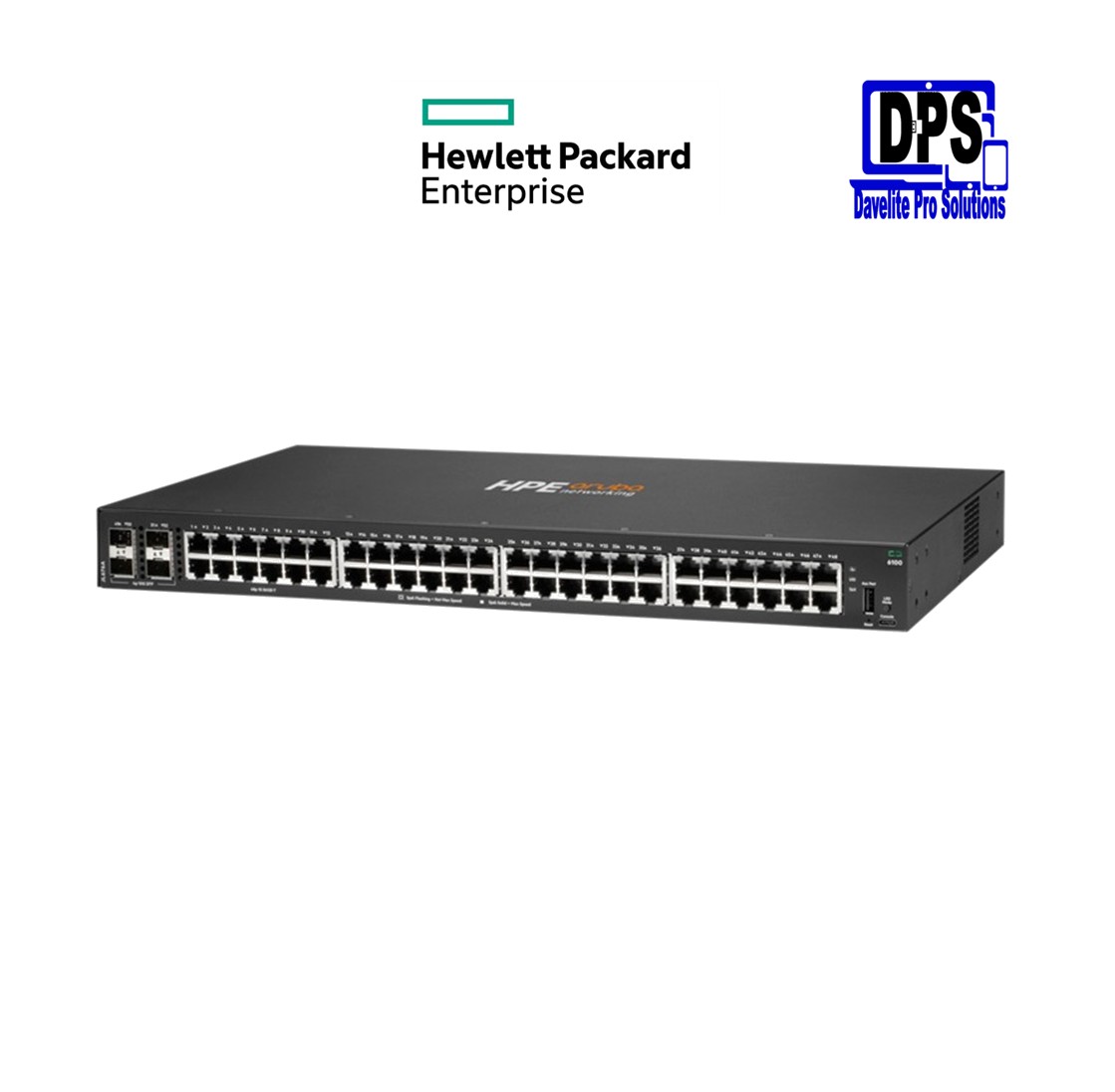

HPE Aruba Networking, CX 6100 48G 4SFP+ Switch

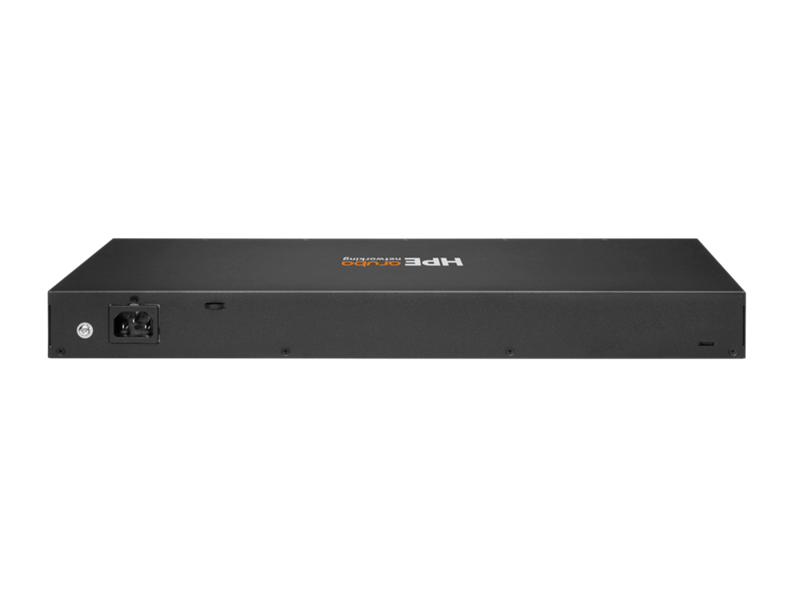

HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A) - Image 2

HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A)

Original price was: KShs 420,999.00.Current price is: KShs 373,750.00. Add VAT

HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A)

Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
Memory: 4 GB DDR3 RAM and 16 GB eMMC flash memory.
Management Ports: 1x USB-C Console Port and 1x USB Type-A Host port.
Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
Memory: 4 GB DDR3 RAM and 16 GB eMMC flash memory.
Management Ports: 1x USB-C Console Port and 1x USB Type-A Host port.

15 in stock

SKU: DPS2300243 Category: Networking Tag: Server Brand: HPE

Description

HPE Aruba Networking, CX 6100 48G 4SFP+ Switch (JL676A)

Switching Capacity: 176 Gbps.
Throughput: 98.6 Mpps (million packets per second).
Latency: 1.9 μSec at 1 Gbps and 1.8 μSec at 10 Gbps.
MAC Table Size: Supports up to 8,192 entries.
Packet Buffer: 12.38 MB (4.5 MB Ingress / 7.875 MB Egress).

Hardware Specifications

As detailed by Provantage and Secure Wireless Works, the switch includes several key hardware components:

Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
Memory: 4 GB DDR3 RAM and 16 GB eMMC flash memory.
Management Ports: 1x USB-C Console Port and 1x USB Type-A Host port.
Dimensions: 4.39 x 44.2 x 24.74 cm (1.73 x 17.4 x 9.74 inches).
Weight: 3.42 kg (7.54 lbs).

Power & Environmental

The JL676A is designed for energy efficiency and standard rack deployment:

Power Consumption: Max power is rated at 44.2W; idle consumption is approximately 20.6W.
Input Voltage: Supports 100-127 VAC / 200-240 VAC at 50/60 Hz.
Cooling: Features fixed internal fans with a side-to-side airflow pattern.
Operating Temperature: Ranges from 0°C to 45°C (32°F to 113°F).
Acoustics: Sound pressure level is approximately 24.6 dB.

Software & Management

Layer 2 Features: Support for VLANs (up to 4,094 IDs), ACLs (256 IPv4/MAC, 128 IPv6 entries), and robust QoS.
Layer 3 Services: Includes support for static routing (up to 512 IPv4/IPv6 routes) and IPv6 capabilities.
Stacking: Supports Virtual Switching Framework (VSF) stacking for up to 8 members.
Management Tools: Compatible with Aruba Central (cloud or on-premise), Aruba NetEdit, Web GUI, and industry-standard CLI
